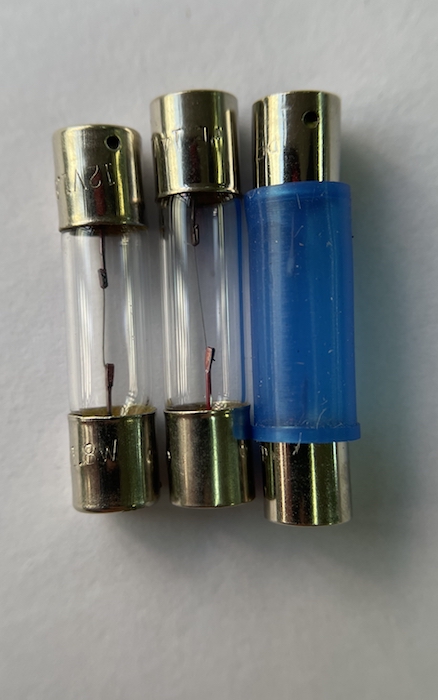

6mm Fuse Lamp
Fuse Lamp系列 Fuse Lamp Series 6mm Fuse Lamp
6MM
| DESIGN |
M.S.C.P. (APPROX.) |
LIFE (HRS.) |
FILAMENT SHAPE |
SF6/6 BASE |
|
| VOLTS | AMPS | ||||
| 6.0 | 0.150 | 0.35 | 5,000 | C-8 | PE 66150-A |
| 6.0 | 0.100 | 0.10 | 10,000 | C-8 | GF 540 |
| 6.0 | 0.200 | 0.40 | 5,000 | C-8 | GF 550 |
| 6.3 | 0.150 | 0.34 | 7,000 | C-8 | PE 66315-A |
| 6.3 | 0.250 | 0.53 | 10,000 | C-8 | PE 66325-A |
| 6.3 | 0.250 | 0.64 | 10,000 | C-8 | GE 570 |
| 6.3 | 0.300 | 0.60 | 10,000 | C-8 | PE 66330-A |
| 6.3 | 0.300 | 0.64 | 10,000 | C-8 | GE 560 |
| 8.0 | 0.150 | 0.40 | 10,000 | C-8 | GF 660 |
| 8.0 | 0.200 | 0.56 | 5,000 | C-8 | PE 68200-A |
| 8.0 | 0.200 | 0.56 | 10,000 | C-8 | GF 650 |
| 8.0 | 0.250 | 0.64 | 10,000 | C-8 | GF 670 |
| 8.0 | 0.300 | 0.80 | 5,000 | C-8 | PE 68300-A |
| 8.0 | 0.300 | 0.90 | 10,000 | C-8 | GF 680 |
| 12.0 | 0.050 | 0.20 | 5,000 | C-8 | PE 6609F |
| 12.0 | 0.055 | 0.25 | 5,000 | C-8 | PE 6610F |
| 12.0 | 0.100 | 0.23 | 10,000 | C-8 | GF 710 |
| 12.0 | 0.150 | 0.40 | 5,000 | C-8 | GF 780 |
| 12.0 | 0.150 | 0.60 | 5,000 | C-8 | PE61215-A |
| 12.0 | 0.250 | 1.00 | 5,000 | C-8 | PE 6612F |
| 12.6 | 0.300 | 0.64 | 5,000 | C-8 | GF 740 |
| 14.0 | 0.100 | 0.35 | 10,000 | C-8 | PE61410-A |
| 14.0 | 0.150 | 0.64 | 5,000 | C-8 | PE 61415-A |
| 14.0 | 0.050 | 0.16 | 10,000 | C-8 | PE 6614F |
| 14.0 | 0.080 | 0.30 | 10,000 | C-8 | PE 6615F |
| 24.0 | 0.045 | 0.14 | 1,000 | C-8 | GF 692 |
