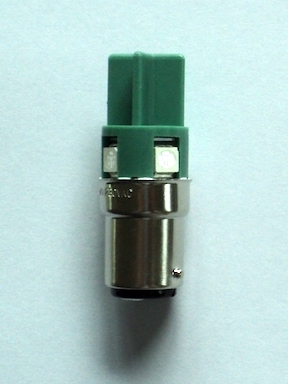

LED BA15D
Bayonet系列 Bayonet Series
BA15D 3mm LED
| DESIGN | Emitting Color | 50% Power Angle (Deg) | Luminous Intensity (MCD) | Peak Wavelength (NM) | |
| VOLTS | AMPS (mA) | ||||
| 12-230V AC/DC | 17 (MAX.) | White | 30 | TYP=2100 | / |
| Red | TYP=400 | 623 | |||
| Yellow | TYP=340 | 587 | |||
| Blue | TYP=680 | 473 | |||
| Green | TYP=2250 | 520 | |||
