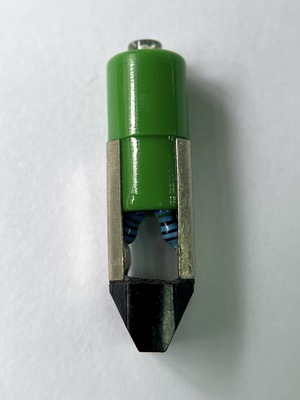

LED #5
電話泡系列 Telephone Slide Series
#5
| DESIGN | Emitting Color | 50% Power Angle (Deg) | Luminous Intensity (MCD) | Peak Wavelength (NM) | |
| VOLTS | AMPS (mA) | ||||
| 6-60V (DC) | 20 (MAX.) | White | 30 | MIN=3000 MAX=5000 | / |
| Red | MIN=1400 TYP=2000 | 623 | |||
| Yellow | MIN=1100 TYP=1800 | 587 | |||
| Blue | MIN=1200 TYP=1700 | 473 | |||
| Green | MIN=4500 TYP=6000 | 520 | |||
